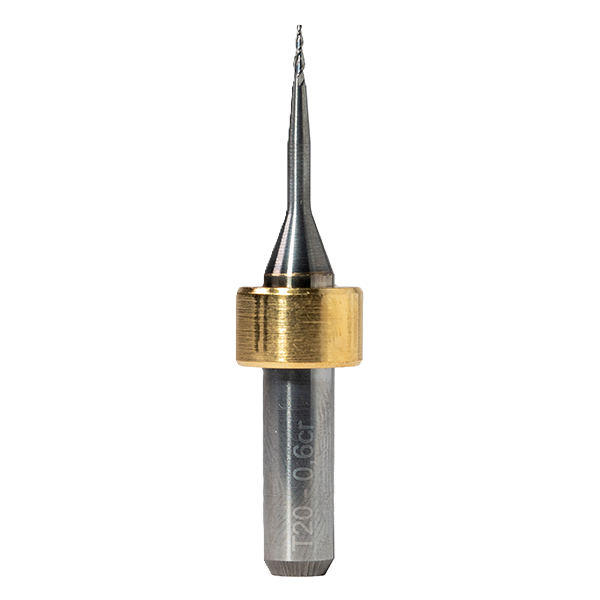

T20 Tizian Cut 5/3.5 Metal mill for CoCr/Titanium 0.6mm, 6 mm shaft
Description
Fissure mill for your Tizian milling system
Product number:
523583
Questions about the product? We are glad to be here for you!
Product information "T20 Tizian Cut 5/3.5 Metal mill for CoCr/Titanium 0.6mm, 6 mm shaft"
Fissure mill, double-edged, edge Ø 0.6 mm, shaft Ø 6 mm, total length 45 mm.
- Processing type: removal of material residue
- Blank material: CoCr, Titan
- Coating type: coated
- Ring color: gold
- For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 metal option (6 mm shaft), CORiTEC 550i, CORiTEC 750i
| Coating type: | Beschichtet |
|---|---|
| Material: | NEM/Co-Cr, Titan |
| Milling Systems: | CORiTEC 550i, CORiTEC 750i, Tizian 3.5/Tizian Cut 5.2 Serie, Tizian Cut 5 |
| Standard/Premium: | Standard |
Cutsomers also bought
T2/T7 Tizian Cut 5/3.5 Metal Drill CoCr/Ti 2mm, 6 mm shaft
Radius cutter short, double-edged, edge Ø 2 mm, shaft Ø 6 mm, total length 45 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: roughing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T3/T8 Tizian Cut 5/3.5 ball-headed metal drill 1,5, CoCr/Ti balltop
Ball-end mill, double-edged, edge Ø 1.5 mm, shaft Ø 6 mm, total length 48 mm Processing type: drilling a screw channel Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T4/T9 Tizian Cut 5/3.5 Metal Drill CoCr/Ti 1mm, 6 mm shaft
Radius cutter short, double-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 45 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: fine finishing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T61 Tizian Cut 5/3.5 radius cutter 3.0 mm for Titan/CoCr, 4-bladed, 6 mm shaft
T61 - metal roughing tool The complex geometry of the four high-capacity cutting edges (this is not a radius cutter!) facilitate a smooth operation, a much better service life and time savings of up to 50 % during the roughing procedure. Metal restorations are manufactured within ca. 10-15 min. in extraordinary quality. Please note that the special cutter geometry requires a new strategy and new tool data in the CAM software. This tool does not replace the reliable T6! Diameter Ø 3.0 mm Cutting edges quadruple edge Shaft Ø 6 mm Cutting length: l = 15 mm Total length: 45 mm Max. blank height: 15 mm Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T1/T6 Tizian Cut 5/3.5 Metal Drill CoCr/Ti 3mm, 6 mm shaft
Radius cutter, short, double-edged, edge Ø 3 mm, shaft Ø 6 mm, total length 45 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: coarse pre-roughing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T12 Tizian Cut 5/3.5 PMMA finemilling single point mill, 1,0mm, 6 mm shaft
Radius cutter single-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 53 mm, max. blank height = 25 mm. Processing type: fine finishing Blank material: PMMA, PEEK Coating type: uncoated Ring color: gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
