Locator abutment, D=5.3 mm GH=2.0,
Variante:
5,3 mm / 2 mm
TiN coated assembly for fixing overdentures. Individual axes on the implant may diverge by max, 20° (10° for implants with Ø 3.3 mm) and between two implants by max. 40° (20° for implants Ø 3.3 mm). ,The self-orienteering construction of the Locator® anchoring system supports the patient when inserting and fixing the prosthesis.
torque wrench 4 Ncm,
Using this torque wrench the inner matrix is screwed into the matrix housing and set onto the patrix. Inner assembly matrices with blue acrylic inserts should not be used as permanent inner matrices in prostheses, they are intended exclusively for use in the dental laboratory.
Locator instrument, three-part,
Screwed stainless steel tip for removing retention inserts, mid section for repositioning the retention inserts, and gold coloured insertion aid for final screwing of the Locator®.
ball anchor 4/5.3 mm,
Variante:
4 mm / 5,3 mm
Partial and hybrid prostheses with a 2.25 mm round head. Two different gingival heights 2 mm and 4 mm.

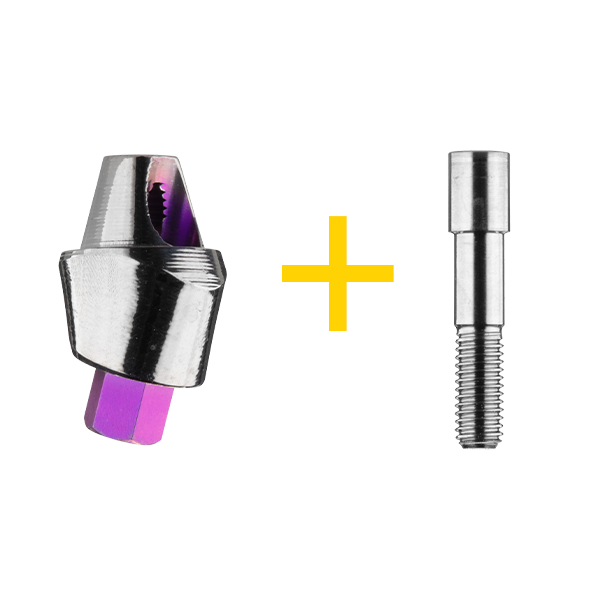

Adhesive base D 3.3 mm, Hex Connection incl. screw
Variante:
Klebebasis 3,3 mm
This is a set: The screw is already included!This titanium base is suited to an adhesive fixation of individual crowns as well as of bridgeworks made from ZrO2. We recommend the use of Sebond Implant and Alphalink Implant.
Impression post 3.3 mm for closed impression, Hex Connection incl. screw blue + transfer cap
Variante:
Abdruckpfosten 3,3 mm, für GL
Closed Impression Technique The IMPLA impression posts are color-coded in line with the implant diameter and equipped with a transfer cover and vertical screw. A preassembled impression tray can be used for the closed tray impression technique. To secure the impression post in place, the vertical screw should be carefully hand-tightened both in the implant and on the laboratory implant using the 1.2 mm screwdriver. The transfer cover (repositioning aid) is pushed onto the impression posts until a noticeable pressure point is overcome and the transfer cover is clearly secure. equipped with a fixing screw (art. no. 636658) and transfer cover (art. no. 635495) "

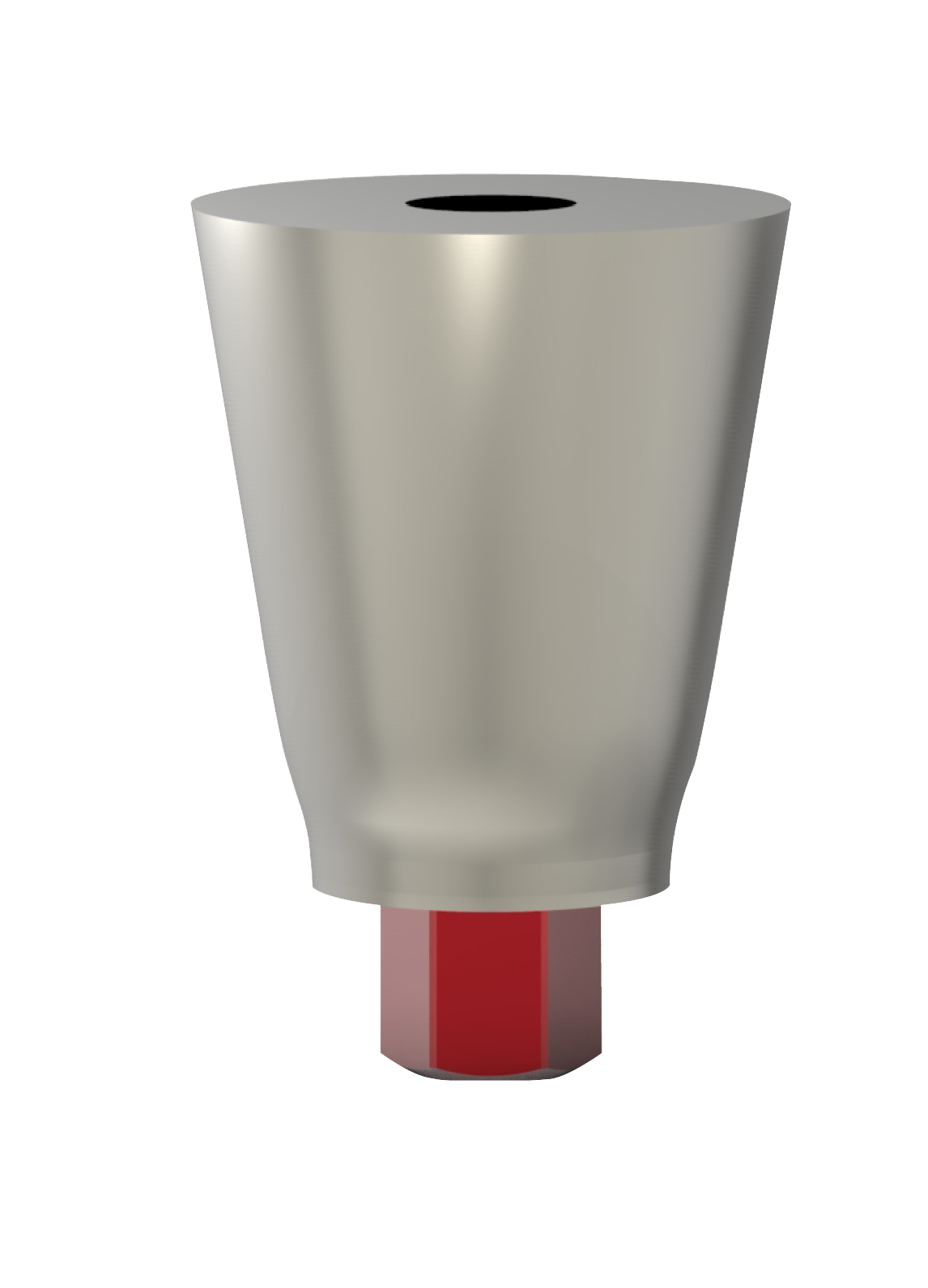

PreFace Abutment Hex Connection
Variante:
5,3 mm / D = 16 mm
Our PreFace®-Abutments facilitate the use of PreFace®-Abutment Holders by Medentika. The PreFace®-Abutments are available in the diameters 11.5 mm and 16 mm and with the connection geometries Hex Connection and Cone Connection. This offers the user the necessary variability. The abutments are made of titanium grade 5 which makes them easy and safe to handle. Titanium grade 5 is also highly biocompatible.Your benefits:With PreFace Abutments® you will achieve a superior added value by flexibility – Use our PreFace®-Abutments together with the PreFace®-Abutment Holders by Medentika. saving time – Two different blank diameters guarantee significantly shorter working times in production. exact definition of the zero position – The uniform length despite the different diameters lets you define the zero position almost exactly. variability – The two different diameters 11.5 mm and 16 mm facilitate flexible work. precision – The preset production processes as well as the standard production processes provide for even more precise results. Material: Titanium grade 5
PreFace Abutment Hex Connection
Variante:
5,3 mm / D = 11,5 mm
Our PreFace®-Abutments facilitate the use of PreFace®-Abutment Holders by Medentika. The PreFace®-Abutments are available in the diameters 11.5 mm and 16 mm and with the connection geometries Hex Connection and Cone Connection. This offers the user the necessary variability. The abutments are made of titanium grade 5 which makes them easy and safe to handle. Titanium grade 5 is also highly biocompatible.Your benefits:With PreFace Abutments® you will achieve a superior added value by flexibility – Use our PreFace®-Abutments together with the PreFace®-Abutment Holders by Medentika. saving time – Two different blank diameters guarantee significantly shorter working times in production. exact definition of the zero position – The uniform length despite the different diameters lets you define the zero position almost exactly. variability – The two different diameters 11.5 mm and 16 mm facilitate flexible work. precision – The preset production processes as well as the standard production processes provide for even more precise results. Material: Titanium grade 5
Impression post 3.3 mm for open impression, Hex Connection incl. fixation screw short
Variante:
3,3 mm, kurze Fixierschraube
Open Impression Technique The IMPLA impression posts are color-coded in line with the implant diameter and are equipped with a short or long fixing screw. The elongated section of the implant axis of the customized impression tray to be created must be perforated so that the fixing screw protrudes from the impression post. To secure the impression post in place, the fixing screw should be carefully hand-tightened both in the implant and on the laboratory implant using the 1.2 mm screwdriver.
activator / deactivator,
Using this wrench, the gold inner matrix can be compressed (activated) or expanded to match the position of the prosthesis.
Adhesive base 3.3 mm, CEREC, (for Hex Connection)
Variante:
Klebebasis 3,3 mm, CEREC
Produce individual CAD/CAM designed and milled implant abutments and individual tooth restorations on IMPLA implants with the IMPLA adhesive base CAD/CAM CEREC®. Based upon the Sirona CEREC® System.

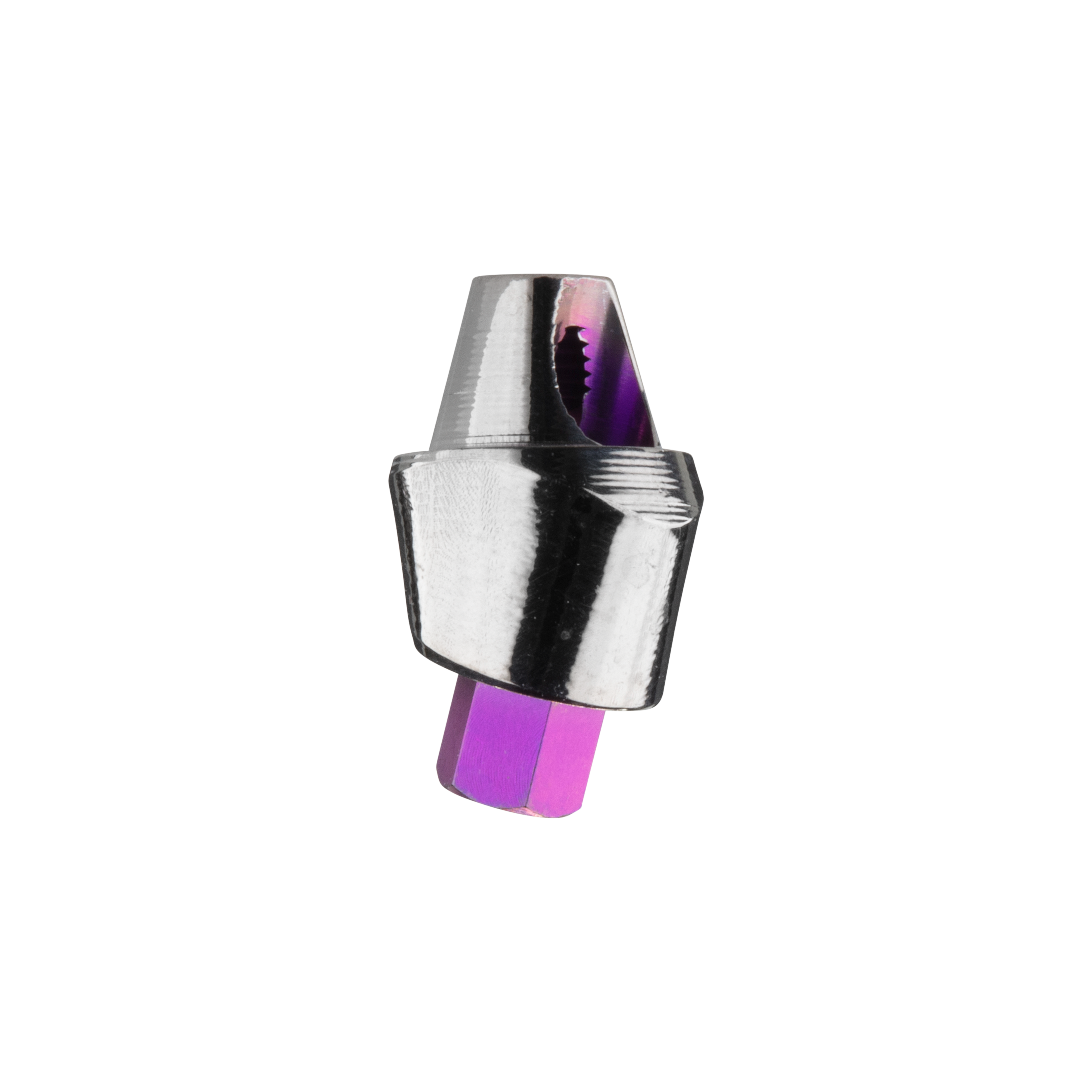

Adhesive base D 4.2 mm,
Variante:
4,2 mm
Use this titanium base (titanium grade 5) to glue both individual crowns and bridge constructions made from ZrO2. We recommend the use of Sebond Implant and Alphalink Implant for this procedure.
Locator adapter, with contra-angle connector,
Tool for unscrewing the Locator abutment with contra-angle or as an insert in conjunction with 636077 in the torque ratchet.
adapter ratchet for Locator adapter contra-angle,
Tool for manual unscrewing the Locator abutment in conjunction with 636075 in the torque ratchet.
Acrylic abutment Hex Connection incl. screw
Variante:
3,3 mm
Das IMPLA Kunststoffabutment besteht komplett aus einem ausbrennbaren Kunststoff (POM). Der obere Bereich dient hierbei als Modellierhilfe, welche individuell okklusal gekürzt werden kann, und sorgt für einen sauberen Abschluss des Schraubenkanals. Dieses Abutment ermöglicht Ihnen die Herstellung von individuellen Einzelzahnkronen und Mesostrukturen, für zementierbare Brückenversorgungen und Primärpfeiler für die Überbrückung von Implantatachsendivergenzen in der Doppelkronentechnik. Das Gussverfahren kann mit einer Gold- oder CoCr-Legeriung oder im Titangussverfahren erfolgen.
Multi Unit gingiva sleeve (PEEK), incl. screw
PEEK gingiva sleeve for the Multi Unit System, can be adjusted individually. The IMPLA Multi Unit system has been specially developed for occlusally screw-retained permanent and removable bars, bridges, and total restorations. IMPLA Multi Unit abutments are available in three different angles (0°, 20°, and 30°). The abutments are directly joined with the respective implant via screw connection. This creates a fixed transgingival platform that can be used for all further prosthetic and laboratory measures. The 0° abutments have a pre-fitted screw thread and are screwed into the implant with the long or short insertion key. The vertical Multi Unit screw is used to attach the 20° and 30° abutments to the implant. This screw is screwed in using the long or short 1.2 mm screwdriver. All laboratory components are secondarily secured to the abutment base with the prosthetics screw using the long or short 1.2 mm screwdriver. For the range of recommended implants, please see the IMPLA instructions for use.
Impression post Multi Unit,
An impression aid for impressions of Multi Unit abutments on abutment level. Fix the impression aid on the Multi Unit abutments with help of the fixation screw OL.
Locator matrix set (3 parts),
In the smallest version, the Locator® has a total height of 3.3 mm with a retention housing and nylon insert. ,This makes the Locator® System also suitable in circumstances where vertical space is limited.
Lab implant 5.3 mm,
Variante:
5,3 mm
Screws in with the Hex Connection impression aid or the Hex Connection impression post, facilitating precise model production.
Locator plugin, light retention, 4 pcs./pink,
Nylon matrix for insertion into the Locator matrix housing. With centric retention, 10° divergence compensation, shearing force 1.360 g.
Locator plugin, extra light retention 4 pcs./blue,
Nylon matrix for insertion into the Locator matrix housing. With centric retention, 10° divergence compensation, shearing force 680 g.
Locator replacement plugin, 4 pcs./clear,
Nylon matrix for insertion into the Locator matrix housing. With centric retention, 10° divergence compensation, shearing force 2.260 g.
Acrylic abutment 0°/3.3 mm,
Variante:
3,3 mm
This material which burns out with nearly no residue is especially well suited for the production of individual abutments by carving or casting. The acrylic abutment bonds well to most carving waxes and acrylics used in a dental lab. This brings clean casting results and an excellent fit of the restorations you produce. Thanks to the very precisely manufactured hex connections of the acrylic abutments, they are highly protected from rotation..Indications: • bar-supported restorations• individual crowns• bridges
Locator plugin, extended range, light retention, 4 pcs./red
Nylon matrix for insertion into the Locator matrix housing. With centric retention, 20° divergence compensation, shearing force 220-680 g.
Locator plugin, extended range, 4 pcs./green,
Nylon matrix for insertion into the Locator matrix housing. Without centric retention, 20° divergence compensation, shearing force 1.360-1.800 g.
inner matrix yellow/light,
Variante:
Gelb / Schwach
If the inner matrix is exchanged during a recall, it can be replaced in seconds by a completely new inner matrix, using a specially made torque wrench. Three color-coded inner matrices with standardized shearing force are available. With existing prostheses where the acrylic inner matrix appears too weak, this can be exchanged for the precious metal inner matrix very easily,without having to change the retention cap!
bar screw,
Connection screw for constructions on cone adapters, ensures permanent fixing of the supra construction on the cone adapter, as well as the bar and the screwed bridge construction, also with the SAE technique. ,
Gingiva sleeve PEEK, (for Multi Unit)
PEEK gingiva sleeve for the Multi Unit System, can be adjusted individually.
Scan abutment for Multi Unit,
This bowling pin shaped PEEK abutment is excellently suited for digital measuring with optical scanners or laser scanners. The Best Fit-function of the design software is precisely supported by an additional levelled surface.Preparing the scan abutment with scan spray is not necessary, as it is optimally scanned because of its dull whitish color.
Fixation screw OT for Multi Unit,
This fixation screw is suited to be used with the forming aid Multi Unit. Due to the knurling at the screw head, this screw is safe and easy to use.
Scanabutment 3,3mm,
Variante:
3,3 mm
Abutment for digital scanning of model situations on the master model. For IMPLA hex connection. This PEEK abutment is especially well-suited for digital measuring with optical scanners or laser scanners due to its bowling pin shape. The Best Fit-Function of the design software is excellently supported by means of a flat surface. The scan abutment does not need to be prepared with scan spray, as the scanner will easily capture it due to its whitish matt color. Your benefits: Extraordinary digital measuring due to the bowling pin shape No preparation with scan spray necessary Size easily recognized because of laser markings Made in Germany
Vertical screw standard, Vertical screw for Impla Direkt GH 1.5 mm
Has a fine thread, which meshes perfectly with the inner thread of the implant, cold welded. This make it practically impossible for the abutment to become loose.
Prosthetic screw secondary, (for Multi Unit Abutment)
This screw is used for the fixation of a restoration on Multi Unit Abutments.
vertical screw blue,
Comes with the implant and helps repeated use when making prostheses in the laboratory. Item no 636649 is strongly recommended as the final connection screw.
retention cap, large, for resin curing, for resin curing
Various inner matrices can be screwed into the retention cap using this specially made torque wrench. If the inner matrix gets worn out, they can be replaced easily, without having to change the inner matrix.
retention cap, small, for framework stabilization
Various inner matrices can be screwed into the retention cap using this specially made torque wrench. If the inner matrix gets worn out, they can be replaced easily, without having to change the inner matrix.
Plastic sleeve POM, for Multi Unit
Acrylic sleeve made of POM (polyoxymethylene) for the Multi Unit System, can be burned out.
Metal sleeve (for Multi Unit),
Titanium sleeve made from titanium grade 5 - for friction-free glue fixing on abutments of the Multi Unit System.
Vertical screw POM,
This vertical screw made of POM facilitates an optimal adhesion at the connection between adhesive base and CAD/CAM element. The perfect fit of the plastic screw reliably prevents adhesive residue from entering the screw channel.
